What's the difference between a bay and a bow window?

A bay window has three sections with the side windows set at sharper angles, giving a more angular projection. A bow window uses four or more equal sections curved gently outward for a softer, rounded look. A bay tends to feel bold and architectural; a bow feels elegant and flowing.

Do the side windows on a bay open?

Usually, yes. The flanking windows are typically operable — casement or hung — so the bay ventilates, while the centre pane is normally a fixed picture window for maximum light and view.

Are bay windows energy-efficient?

They can be. Each section uses Trust Build's triple-pane glass unit — Cardinal IG, argon fill, dual Low-E, and Super Spacer® warm-edge spacer — and proper insulation of the seat board, head board, and projection framing is essential. Our crews handle that integration so the whole assembly performs.

Do bay windows need special structural support?

Yes. Because a bay projects beyond the wall, it needs proper support (cable or knee brackets) and weatherproofed, insulated framing. Trust Build handles the full structural integration as part of the installation.

Can a bay window add usable space?

Yes — the projection creates an interior ledge or window seat that's ideal for a reading nook, plants, or display, while expanding the sense of space in the room.

Can I get a rebate on bay windows?

ENERGY STAR® certified windows may qualify for the Home Renovation Savings™ program — up to $100 per rough opening, with a home energy assessment required before work begins. Our team will confirm how it applies to your home. Full details at homerenovationsavings.ca.

BAY WINDOWS · PROJECTING 3-SECTION DESIGN · ENERGY STAR® CERTIFIED

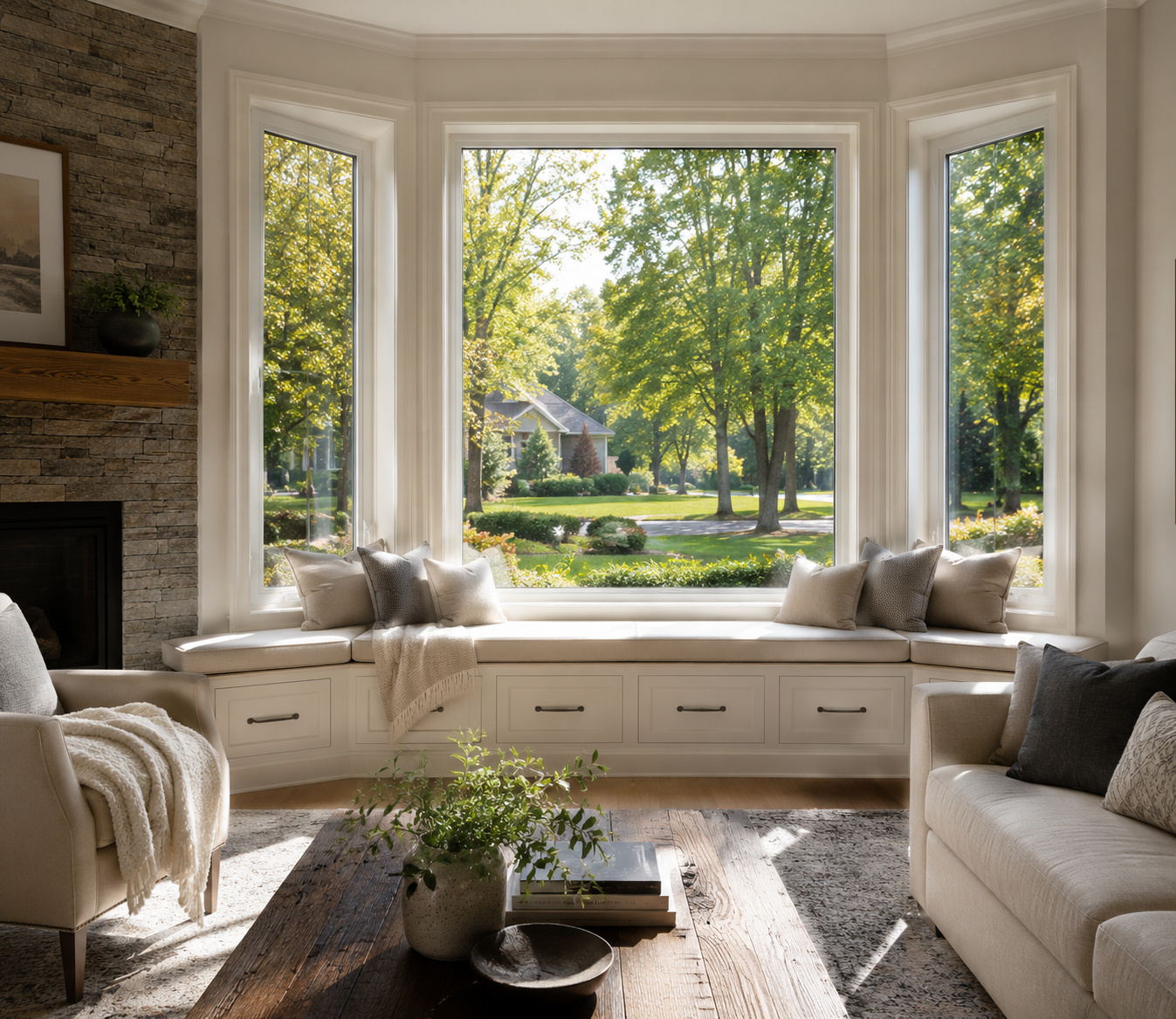

Bay Windows in Ontario

A three-section window that projects outward from the wall to create a bright architectural feature — and a usable interior ledge or seat. Designed, structurally integrated, and installed by Trust Build's own expert crews.

Get Your Free Quote See All Window Styles

4.9★ · 327+ Reviews 8,700+ Homes Served Lifetime Warranty ENERGY STAR® Certified

What Is a Bay Window?

A projecting window that adds space, light, and architectural character

A bay window in Ontario is a projecting window made of three sections that angle outward from the wall, typically a large fixed centre pane flanked by two side windows set at 30° or 45°. The projection pushes the glass beyond the exterior wall, adding interior space, drawing in light from three directions, and creating a striking feature inside and out. The angled side windows are usually operable — casements or hung windows — so the bay still ventilates.

How a Bay Window Is Built

Engineered as an assembly, installed as a system

A Trust Build bay window combines:

A fixed picture centre — the largest pane, framing the view and flooding the room with light.
Two angled flanking windows — set at 30° or 45° and usually operable (casement or hung) for ventilation.
An insulated seat board and head board — finishing the projection inside, creating a ledge or window seat.
Proper structural support — cable or knee-bracket support and insulated, weatherproofed framing so the projection performs for the long term.

Because a bay projects beyond the wall, correct structural integration matters as much as the glass. Trust Build is an installation-first company — we handle the framing, insulation, weatherproofing, and support so your bay is solid, sealed, and built to last.

Why Bay Windows Suit Ontario Homes

Space, light, and curb appeal in one feature

Added interior space

The projection creates a ledge or seat — perfect for a reading nook, plants, or extra display space.

Light from three directions

The centre and two angled panes pull in far more daylight than a flat window.

Real curb appeal

A bay adds depth and character to a facade, often lifting the look of the whole elevation.

Built-in ventilation

The operable flanking windows let you air the room while the centre frames the view.

Engineered For Ontario

Triple-Pane Glass Unit

Every section of a Trust Build bay window is available with our triple-pane glass unit — three panes of glass, two argon-filled chambers, a dual Low-E coating that manages heat in both directions, and a Super Spacer® warm-edge spacer that reduces heat loss at the glass edge. Built with Cardinal Glass insulated units, it keeps a large projecting window comfortable and efficient through Ontario winters. Double-pane is available where the exposure allows.

Triple-pane construction

Three panes of glass separated by two insulating chambers.

Argon gas fill

A denser-than-air insulator that slows heat transfer through the glass unit.

Dual Low-E coating

Reflects warmth back into your home in winter and deflects solar heat in summer.

Warm-edge spacer

Reduces the cold bridge at the window's perimeter, where condensation and heat loss begin.

Certified Performance

Tested Energy Performance (Component Windows)

A bay is an assembly, so its performance comes from its component windows. The certified triple-pane values below are for the windows a bay is typically built from — using NRCan / ENERGY STAR® metrics (ER, U-Value, SHGC).

Component (triple-pane)	ER	U-Value	SHGC
Fixed centre (CV-F)	47	0.85	0.44
Casement flankers (CCS-L)	42	0.90	0.37

Values are derived from certified product testing and may vary by size, configuration, and glass package. Higher ER and lower U-Value indicate better energy performance.

Features

Built for Ontario, backed for life

Three-section projecting design

Fixed centre with two angled flankers at 30° or 45°.

Operable flanking windows

Casement or hung for real ventilation.

Interior ledge or window seat

Usable space created by the projection.

Triple-pane glass unit

Cardinal IG, argon-filled, dual Low-E, Super Spacer® warm-edge.

Full structural integration

Support, insulation, and weatherproofing handled by our crews.

Insulated seat and head boards

A finished, energy-efficient projection.

Built for Ontario

Engineered to resist warping, cracking, and fading.

Where Bay Windows Work Best

A feature that transforms a room — and the facade

Bay windows make the strongest impression in rooms where you want a feature and a little extra space: living rooms, dining rooms, and primary bedrooms, where the projection becomes a seat or display ledge. They're also a popular way to brighten a kitchen breakfast nook. Because a bay reshapes the exterior, it's often used on a front elevation to add depth and curb appeal to the whole facade.

Customization

Configure your bay to suit the room and the look

Configure your bay to suit the room and the look: choose the projection angle (30° or 45°), the flanking window type (casement or hung), and a range of exterior frame colours. Add grilles to match your home's style, and finish the interior seat board to complement your trim. Specialty glass — tinted or low-iron — is available for the centre pane.

Rebates & Financing

Save more on your bay window upgrade

Home Renovation Savings™

ENERGY STAR® certified bay windows installed as part of an eligible upgrade may qualify for the Home Renovation Savings™ program — up to $100 per rough opening through the assessment stream, with a home energy assessment required before any work begins. The program sets eligibility and amounts; we'll explain how it applies to your home. Full details at homerenovationsavings.ca.

Check My Eligibility

0% Financing for 12 Months

Spread the cost with 0% financing for 12 months through Financeit. No hidden fees, no surprises — just predictable monthly payments while you enjoy the comfort and value of new windows. We'll walk you through the application during your free estimate.

FAQ

Bay Window FAQ

A bay window is a projecting window made of three sections — a fixed centre pane flanked by two side windows angled outward at 30° or 45°. The projection adds interior space, brings in light from three directions, and creates a feature inside and out.

Project Gallery

See real Bay Windows we've installed across Ontario

View Bay Windows Gallery

Get Started

Add light, space, and character with a bay window.

Get a free, no-obligation quote from Trust Build — ENERGY STAR® bay windows, full structural integration, expert installation by our own crews, and flexible financing.
